AVR GE-Force
A good start is the perfect base for an excellent end result. A good soil preparation leads to optimal growth conditions and a good, high-quality product. In short: the AVR GE-Force is an investment that reimburses itself by maximizing your profits.
ROBUST DRIVE LINE
The GE-Force is equipped with a simple one speed gearbox that directly transmits the incoming torque to the side drive. The standard gearbox can handle up to 250 hp of power. A 380 hp gearbox is also available as an optional extra; in addition a 3 speed gearbox is also available which offers greater flexibility with the rotor speeds for use in varied soil types.
Since the rpm is only reduced in side drive, the forces that act on the intermediate shafts and bearings are limited, leading to far less component wear and tear.
Highlights
SELF-CLEANING COVER, LESS MAINTENANCE
The cover above the rotor is fixed by means of springs; these make sure the cover is continuously vibrating, preventing soil accumulation. When soil accumulation<br>cannot be prevented, for instance when working in extreme conditions, optional hydraulic cylinders that can press the cover<br>into the springs (e.g. on the headland) can be installed, allowing the hooks to clean the cover.<br><br>Three inspection hatches give access to the rotor. This allows for easy and fast cleaning and inspection of the cultivator rotor.

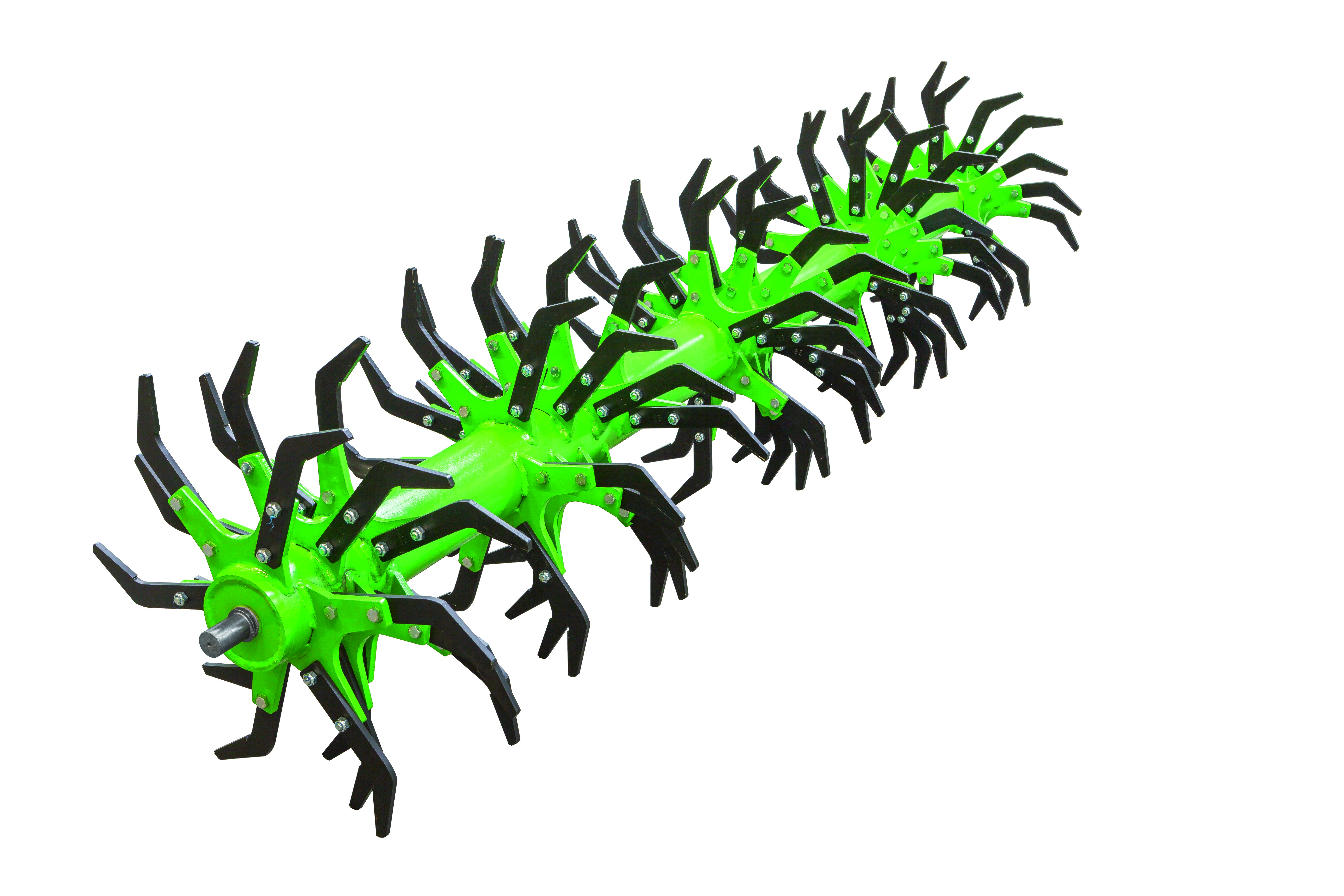

ROTOR WITH 6 TINES
In ordinary conditions, the same crumbling is achieved with six<br>(instead of four) tines and a lower engine rpm. This leads to a 33%<br>reduction in fuel consumption and extra prevention of wear and<br>changing of parts. A higher speed with the same rpm is also possible to further increase the capacity.
AUTOMATIC STEERING MECHANISM
The ASI option (Automatic Steering Mechanism) makes sure that the ridge is shaped precisely above the mother tuber<br>in all conditions. This is important for an optimal growth of the seed potatoes.
Technical details
| HD - fixed frame 4x75 | HD - fixed frame 4x80 | HD - fixed frame 4x85 | HD - fixed frame 4x90 | HD - fixed frame 6x75 DD | HD - foldable 6x90 | HD - foldable 8x75 | |
|---|---|---|---|---|---|---|---|
| Working width interrow cultivator (mm) | 3088 | 3348 | 3348 | 3800 | 4500 | 5400 | 6088 |
| Number of tines interrow cultivator | 72 | 84 | 84 | 84 | 104 | 124 | 124 |
| Working width full field (mm) | 3088 | 3348 | 3548 | 3800 | 4500 | ||
| Number of tines full field | 128 | 136 | 136 | 164 | 232 | ||
| Weight (kg) | 1,650 | 1,750 | 1,850 | 2,000 | 2,500 | 2,750 | 3,800 |
| Required kW/hp (min.) interrow cultivator | 66/90 | 88/120 | 88/120 | 88/120 | 102/140 | 115/160 | 115/160 |
| Required kW/hp (min.) full field | 90/120 | 100/130 | 110/150 | 110/150 | 115/160 |
