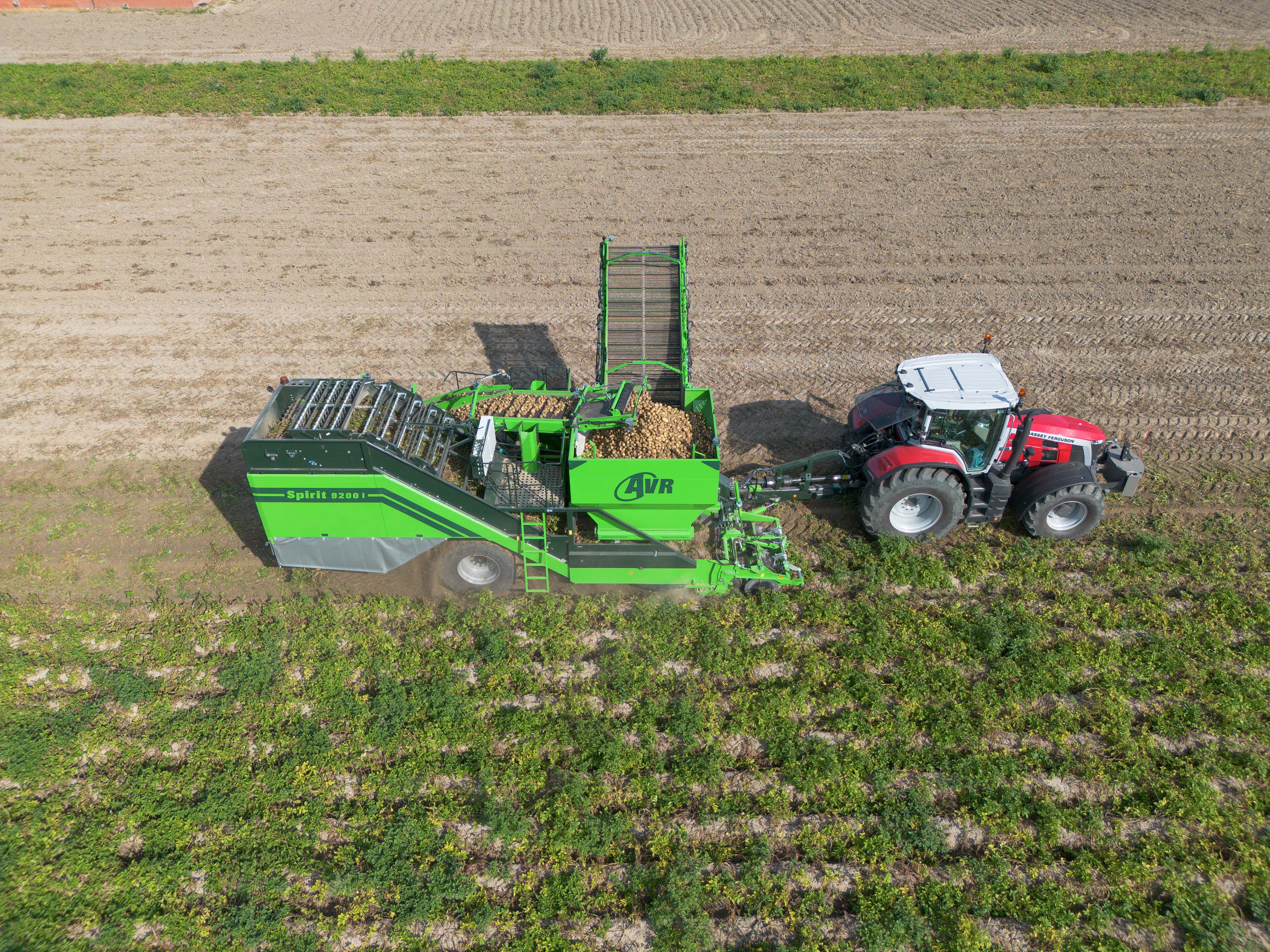

AVR Spirit 9200i
Greater flexibility, capacity and comfort: all at your fingertips thanks to the fully hydraulic drive system and cross-roller set as an additional cleaning module. All of this was, of course, developed pursuant
to the AVR philosophy, in which potato-friendly harvesting is our highest priority.
In line with the successful concept of the Spirit 9200, the Spirit 9200i offers a number of important upgrades in the area of control, traction, haulm web, pintle belt module, cross-roller module and the Clean & Go bunker.
EXCEPTIONAL CLEANING CAPACITY
A cross-roller set for the pintle belt unit significantly increases the machine’s cleaning capacity – without any need for additional directional changes in the machine. This is unique in the market.
The pintle belt module to the rear of the machine is fully adjustable in terms of incline and guarantees full control over the product flow under all circumstances: regardless of whether you are working on a slope or a flat surface, or on light or heavy soil.
The new, hydraulically collapsible retaining roller on the transversal pintle belt can be operated from the cabin. This means that obstructions can easily be avoided, even in the most difficult sections of your plot.
The cross-roller module’s seemingly infinite adjustment options allow the digging unit to be used in every situation.
Highlights

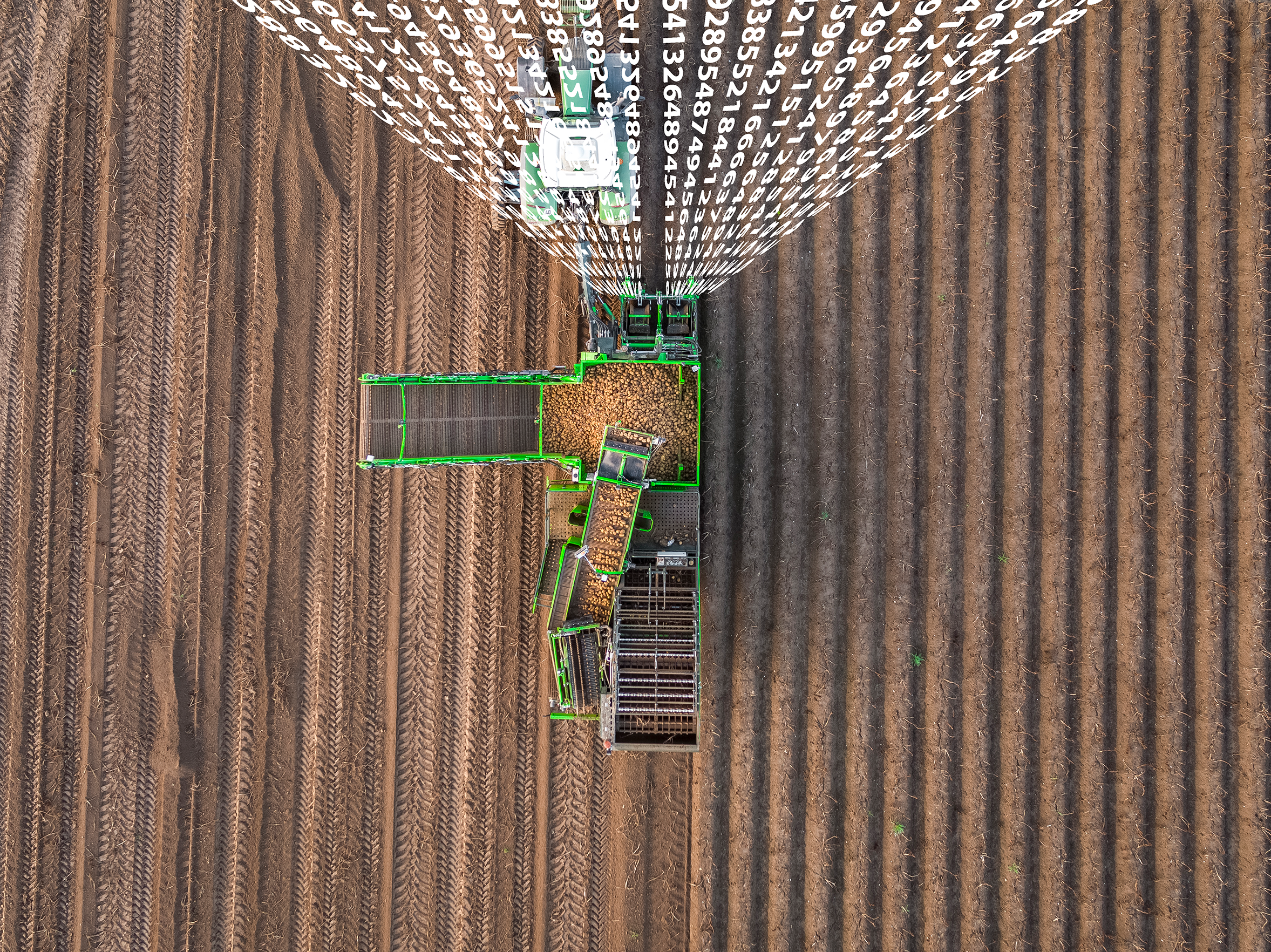

AVR CONNECT
The Spirit 9200i can be fully monitored remotely, online. An AVR Connect account allows you to monitor data in relation<br>to the work you have performed, sensor data, alarms and yield data. Even remote diagnostics are possible for even better<br>support from your dealer or AVR.

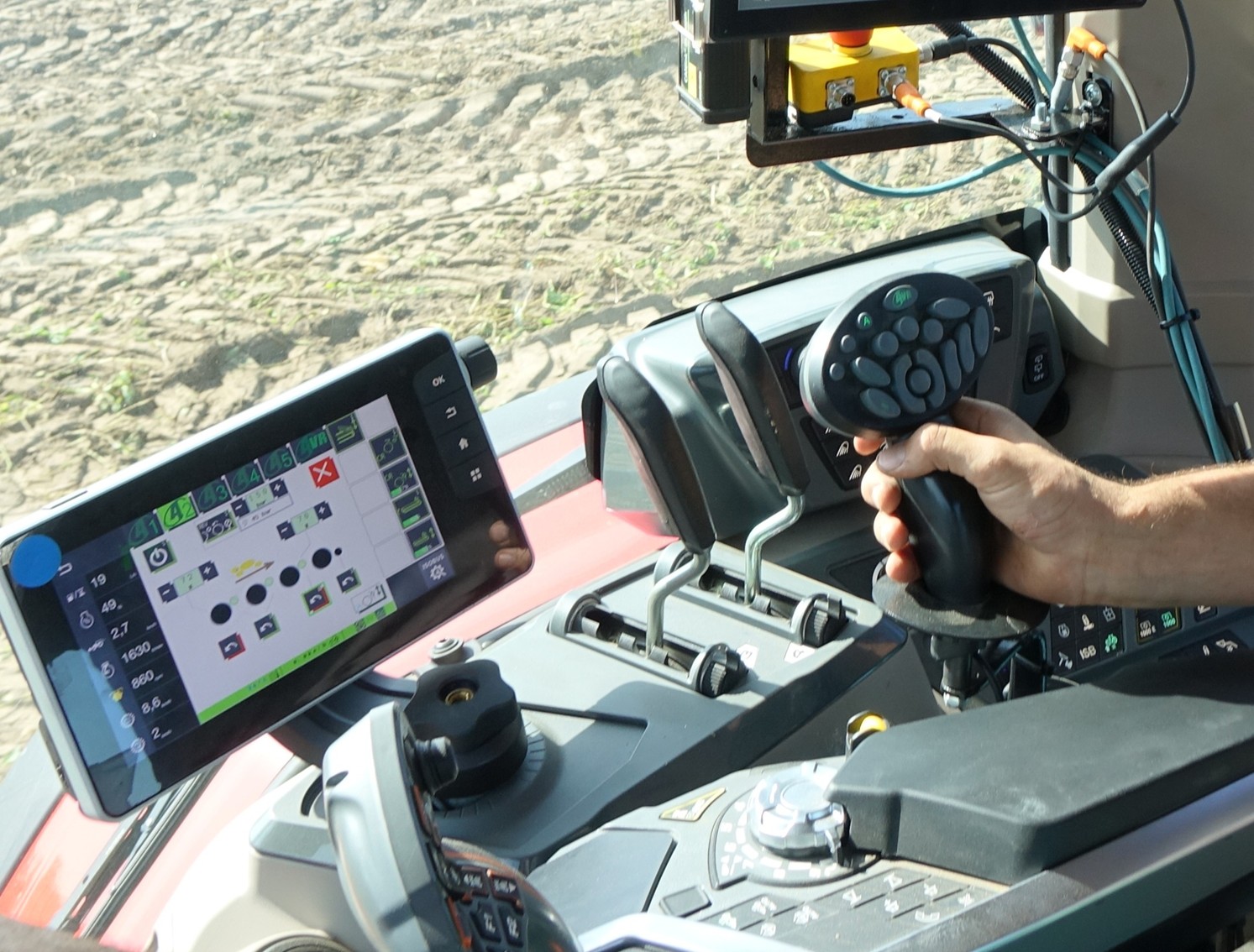

ISOBUS
The machine’s drive system is compatible with ISOBUS. This means that the machine can be configured via the ISOBUS-compatible display screen of your choice. AVR can offer you a Müller Touch800 or Smart570 screen for this purpose. <br><br>The machine also comes with an ergonomic AVR joystick as a standard, and thanks to the ISOBUS-AUX system, various functions can also be controlled via your tractor joystick. Clear icons and intuitive menus, supplemented by the automatic functions of the machine, all serve to optimize the user-friendliness of the Spirit 9200i.
TRACTION
Hydrostatic wheel drive is available optionally. An additional hydraulic pump drives a 2815cc wheel motor on the right wheel and a 1745cc wheel motor on the<br>left wheel. Consequently, the rear axle is provided with a traction capacity of 120 hp. <br><br>The traction system – which is even more powerful than in the previous model – also excels in terms of user-friendliness: it can be operated via an intuitive supplementary keypad, while the ISOBUS control automatically detects whether the machine is moving forwards or backwards.
Technical details
| Spirit 9200i | |
|---|---|
| Dim. (l x w x h) | 11.7 x 3.30 x 4.00 m |
| Inter row distance (cm) | 75 - 90 |
| Bunker capacity (tons) | > 8 |
| Weight (kg) | 11,495 |
| Maximum discharge height (m) | 4.20 |
| Required power (hp) | 120 kW/ 160 hp |
