AVR Spirit 7200

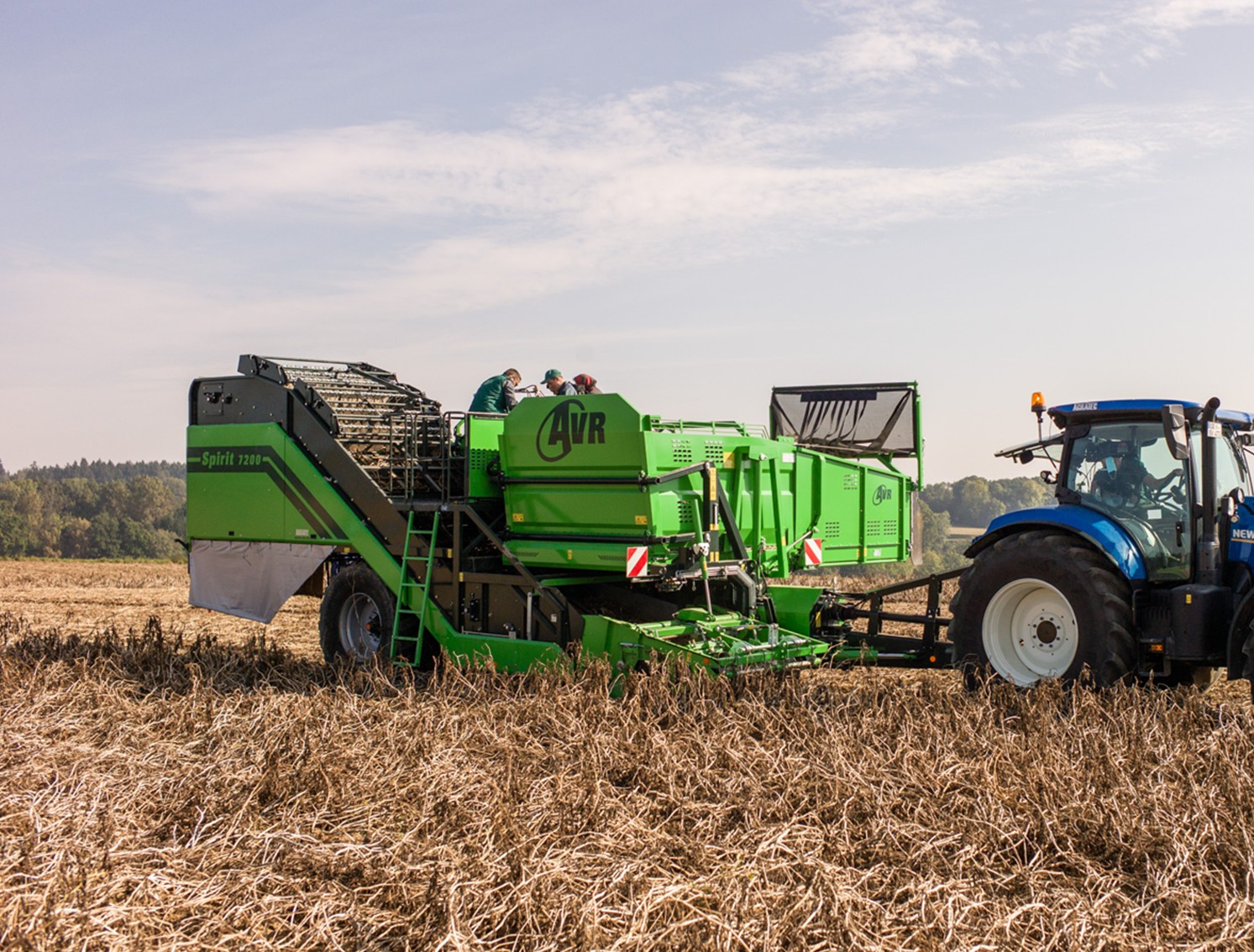

The Spirit 7200 complements the AVR Spirit family with a trailed, two-row offset potato harvester.
The Spirit 7200 is equipped with a unique, additional haulm separation system: an additional haulm roller just in front of the in-line pintle belt. A trash web under the haulm web ensures that potatoes that “dropped” late remain in the machine and that any haulm that does fall through the haulm web is removed.
CLEANING MODULES
After being picked up by the digging unit, the first sieving takes place on the digging web, which has a width of 1,650 mm. This is fitted with hydraulically powered eccentric vibrators. Then there is the combination of haulm web and sieving web – as these operate so close to one another, the drop height from the digging web to the sieving web has been kept to a minimum. A haulm roller is installed at the transition from the sieving web to the pintle belt for additional haulm separation.
On the in-line pintle belt, the potatoes are conveyed to the transversal pintle belt by a triple retaining roller. If desired, the transversal pintle belt can be placed at a greater or lesser angle. Height adjustment from the picking-off table offers the option of quickly adjusting the cleaning capacity.
Highlights
AVR CONNECT

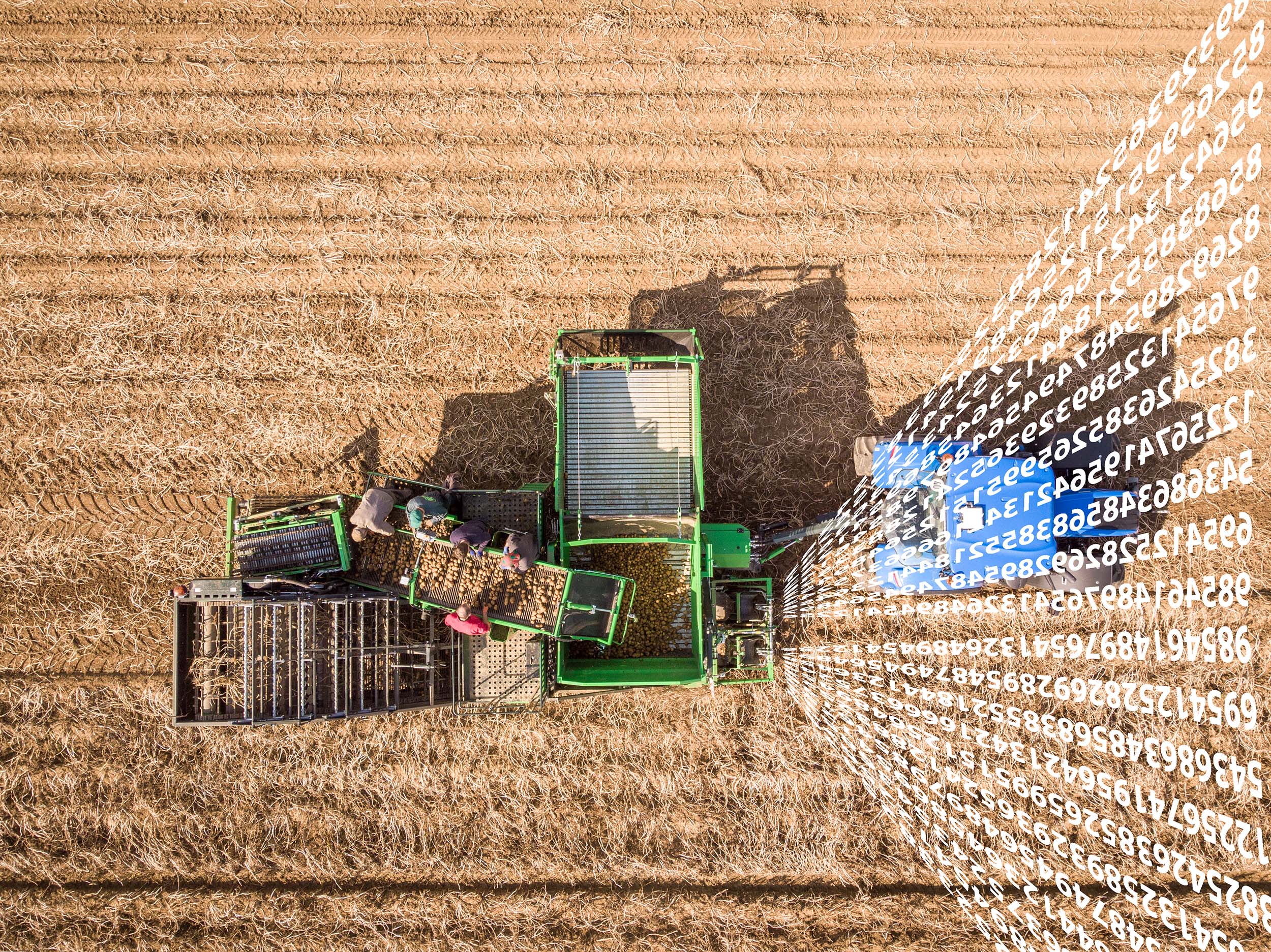

This machine can be connected to the internet which allows for machine data to be transmitted to AVR Connect. AVR Connect is an online reporting tool for your machine activities and an online collection system for all your machine data, both on and off the field.<br><br>AVR Connect offers you more data and consequently a more effective use of your machine and resources.
OPERATION

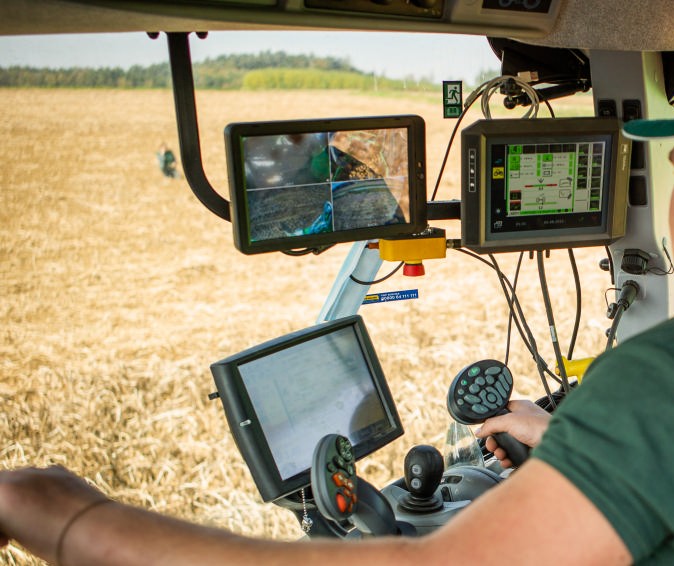

The machine is ISOBUS compatible, so it is compatible with the ISOBUS display in the tractor.<br><br>The 7200 has a range of automatic functions,<br>including:<br>▪ Automatic level correction<br>▪ Automatic counterpressure control on<br>the digging unit<br>▪ Automatic adjustment of the swan<br>neck on the picking-off table<br>▪ Automatic bunker floor movement<br>▪ Inclination of the pintle belts<br>▪ Automatic row following, etc.
DIGGING UNIT
The Spirit 7200 is equipped with a quick-change kit as standard.<br>This means that the user can change the digging unit in just a<br>few minutes to allow a different crop to be harvested<br>(e.g., an onion picking unit).<br><br>Mechanical and, as an option, hydraulic depth adjustment are<br>available.
Technical details
| Spirit 7200 | |
|---|---|
| Rows | 2 |
| Inter row distance (cm) | 75, 80, 85 or 90 (ACC only 75 or 90) |
| Dimensions (l x w x h in m) | 10.69x 3.30 x4 (Spirit 7200) | 10.69x3.00x4 (Spirit 7200-S) |
| Weight (kg) | 10250 (Spirit 7200) | 10150 (Spirit 7200-S) |
| Bunker capacity (tons) | 7 (Spirit 7200) | 6,5 (Spirit 7200-S) |
| Maximum discharge height (m) | 4.25 (Spirit 7200) | 4.20 (Spirit 7200-S) |
| Required power (hp) | 140 |
| Drive | Mechanic (Exc. pintle belts: hydraulic) |
| Offset/in-line | Offset |
| Oil flow (on 180 bar) (l/min) | 75 |
