AVR Spirit 6100
The Spirit 6100 is a 1-row offset potato harvester equipped with a six ton bunker. This smallest member of the Spirit family has everything you need for a quality harvest.
Over the years, the Spirit series has built a strong reputation for potato-friendliness and capacity.
HARVEST QUALITY
The Spirit 6100’s unique harvesting and separation system provides a very potato-friendly harvesting process - it’s all about your precious potato. AVR has therefore developed a smooth product flow with minimal drop heights, as few directional changes as possible and a flat picking-off table. These features make it the ideal machine for harvesting early potatoes for the retail market. The 6-ton bunker and wide channel also ensure ample capacity.

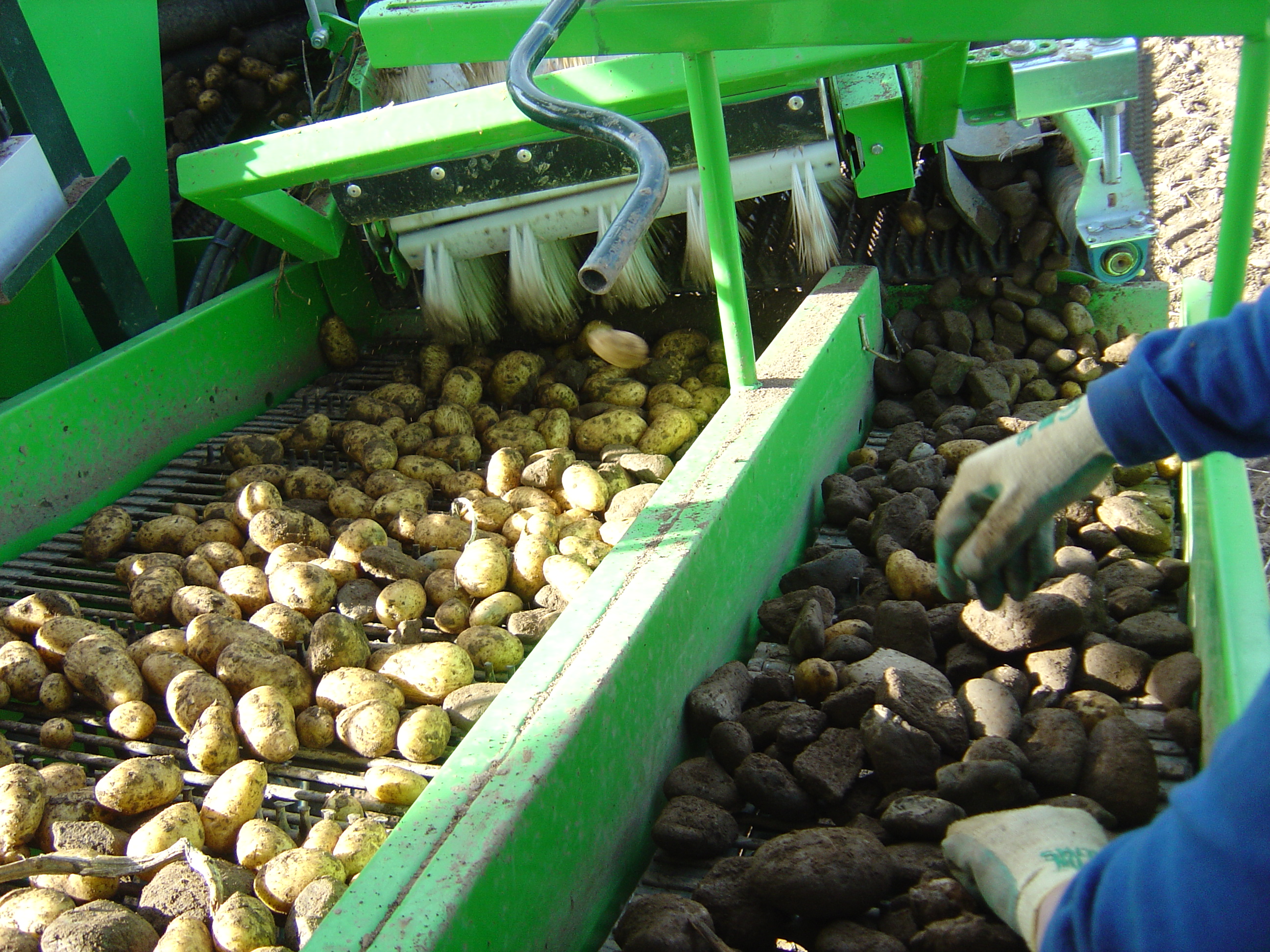

The remaining haulm, reject potatoes or soil clods can be manually removed from the product flow at the picking-off table or at the discharge belt for an optimal result.
Highlights
SINGLE ROW, LARGE CAPACITY
The Spirit 6100 is a single row bunker potato harvester with a large capacity. It can transport 6,000 kg in combination with the bunker optimizer. This substantially increases the capacity of the machine, since less time is spent discharging.
EASY OPERATION
The machine is driven by a CAN-bus system, like our trailed 2-row harvesters and our self-propelled harvesters. With this CAN-bus system the machine can be operated with a joystick and via an operating screen, to make adjustments. <br><br>The spacious 6-ton bunker means fewer unloading moments per hectare, which saves time.
COLLECT THE CROP & DISCARD THE WASTE
The rotary comb is an effective stone and clod separator within the machine. Stones and hard clods pass through the rotary comb and are directed to the retaining roller on the discharge belt. <br><br>From there, any wayward potatoes can be identified and brought back to the picking-off<br>table. The rotary comb also provides a more even spread of the product flow across the picking-off table.
Technical details
| Spirit 6100 | |
|---|---|
| Rows | 1 |
| Inter row distance (cm) | 75 or 90 |
| Dimensions (l x w x h in m) | 8.82 x 3.00 x 3.70 |
| Weight (kg) | 6.500 |
| Bunker capacity (tons) | 6 |
| Maximum discharge height (m) | 4.10 |
| Required power (hp) | 66 kW / 90 hp |
| Drive | Mechanic |
| Offset/in-line | Offset |
| Oil flow (on 180 bar) (l/min) | 60 |
