AVR CERES 200H
The Ceres 200H is a two-row planter equipped with nearly all features its larger siblings have to offer.
If you are restricted to two-row planting after destoning, all functionalities of the four-row machines can be reduced to a two-row width. Like the M version, the Ceres 200H is two-row mounted planter, but in this case, the machine is driven fully hydraulically and comes with a comprehensive technology package and a larger bunker. This machine is designed for planting in preconstructed beds, i.e. mainly for situations where the soil is “destoned”.
ACCURATE PLANTING IN LESS THAN NO TIME
The planting element is a model of precision and reliability. Two times 20 cups mounted on the cup belt ensure a continuous precision at high planting speeds. Also, at higher driving speeds, the planter operates relatively calmly.
The large upper drum ensures stillness at the top side, the small top roller at the bottom side, and the slightly tilted position of the planting element guarantees an accurate placement (also on slopes).
Highlights

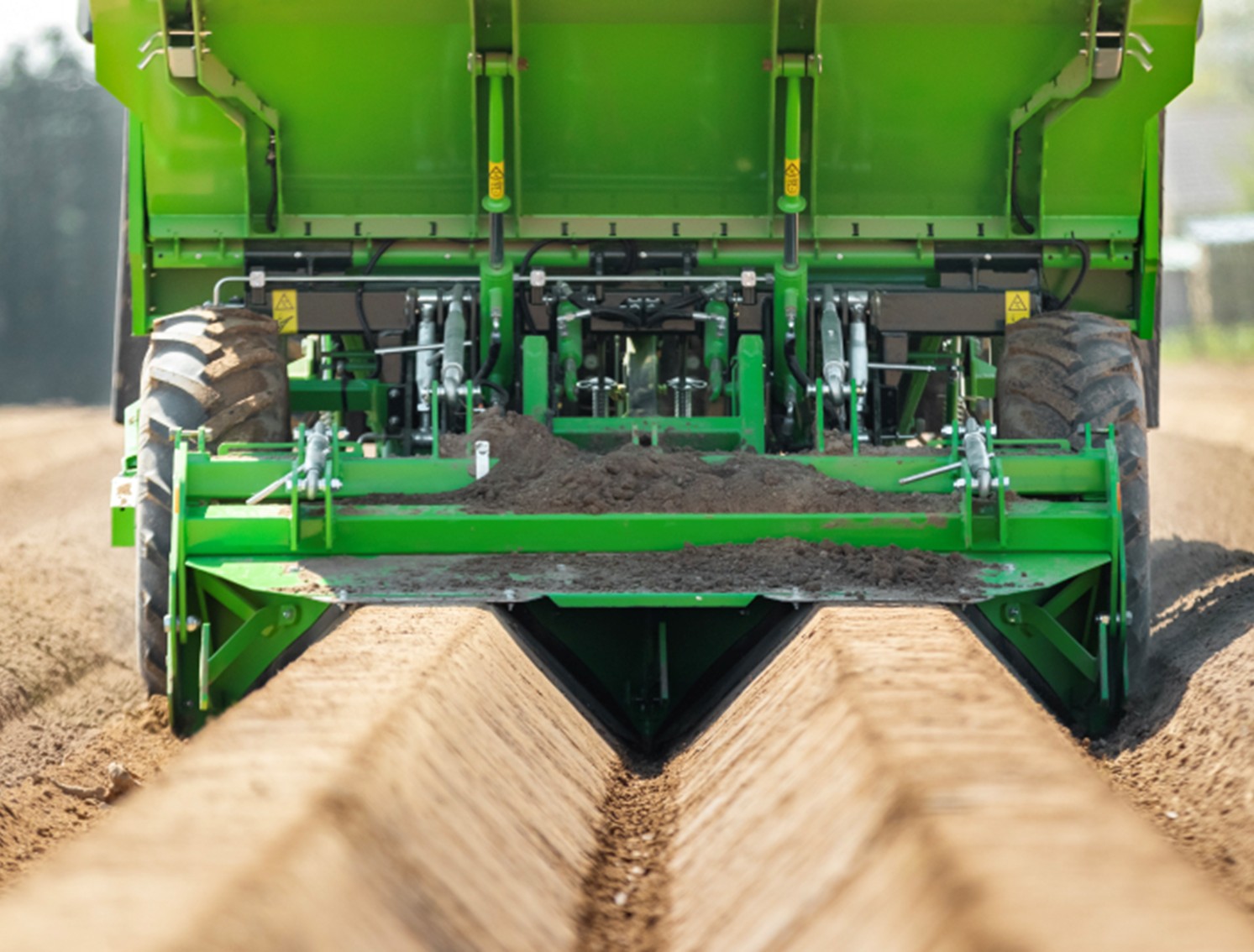

TIGHT RIDGE CONSTRUCTION
After planting the seed potatoes, the covering discs make sure the plant furrows are neatly covered.<br> <br>To immediately obtain a well-formed ridge, a ridging hood can be mounted. By default, an automatic pressure control with an accumulator is mounted on the ridging hood, making it possible to set the ridge pressure from the operating screen. <br><br>A PDC (Proportionally Distance Controlled) system can also be opted for. This system measures the amount of soil in the ridging hood and makes the necessary adjustments when needed.

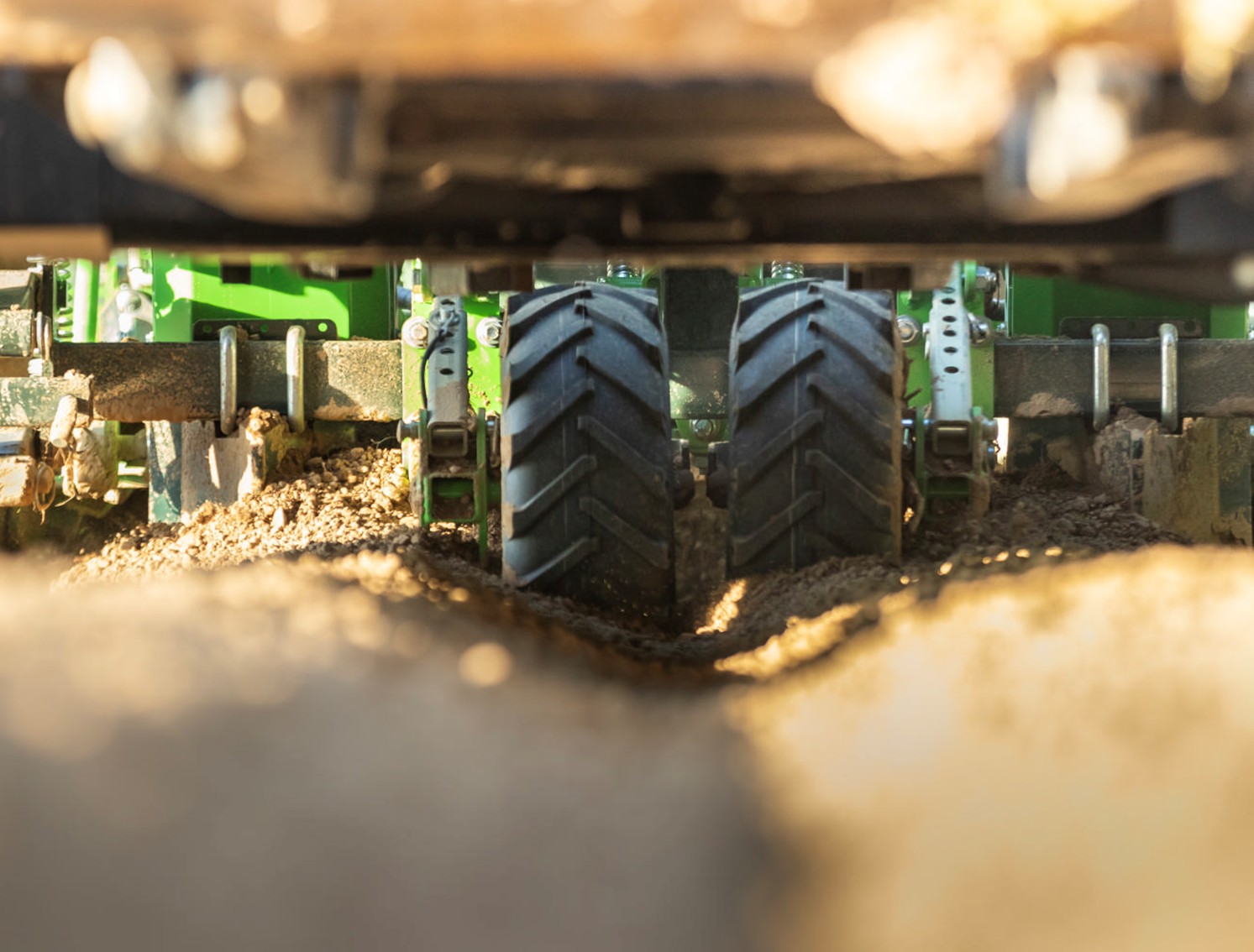

PLANTING IN BEDS
This machine is designed for planting in preconstructed beds, i.e. mainly for situations<br>where the soil is “destoned”.<br><br>The Ceres 200H is particularly suited for planting in these conditions thanks to its<br>large wheels (11.5/80-15.3), narrow furrow ploughs, capability to position the wheels next to the bed and soil guiding plates to keep the soil inside the machine

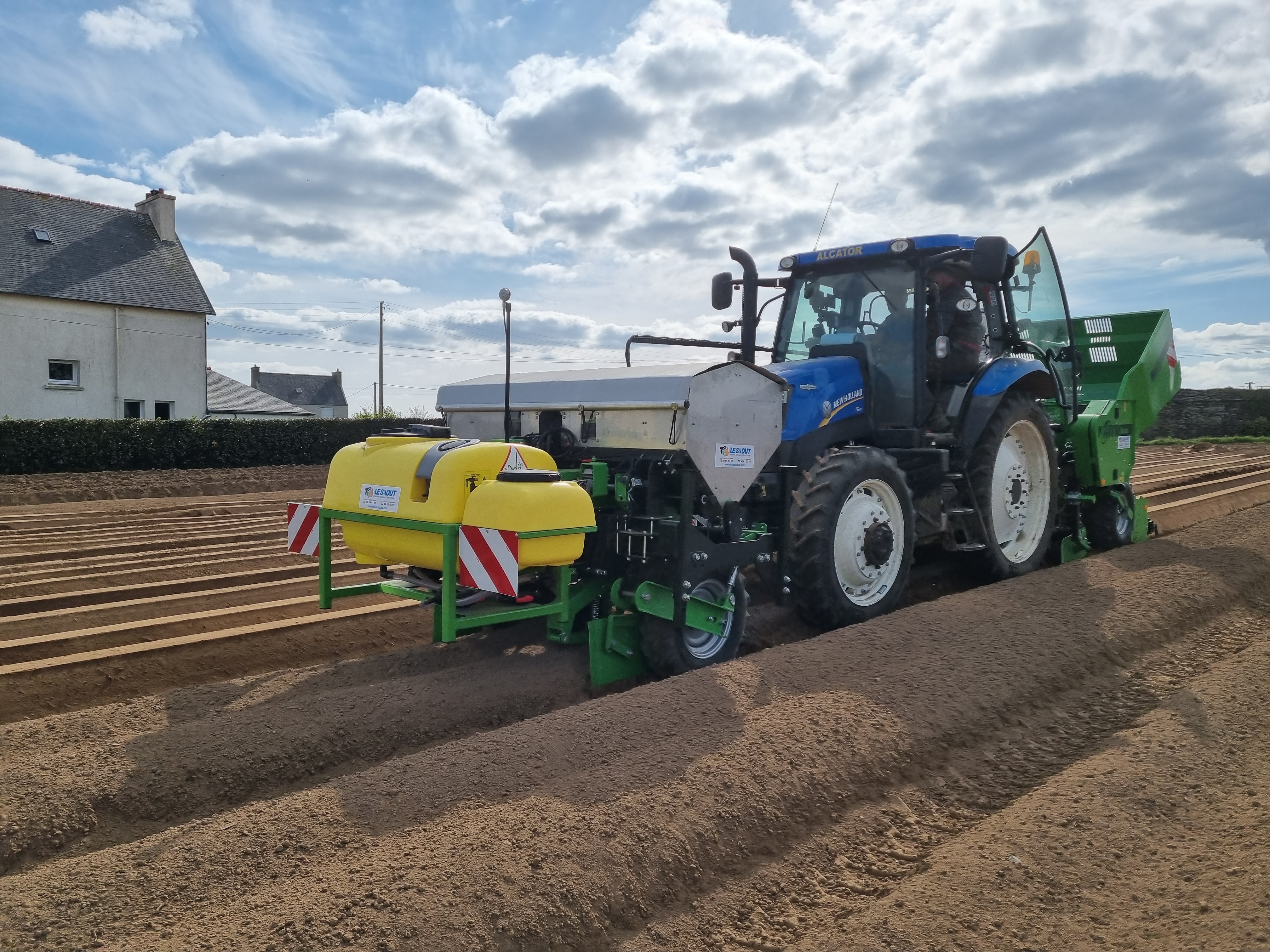

EVEN MORE IN ONE WORKING PASSAGE
Different combinations are possible with the Horstine granular applicator, ZIBO powdering unit and the Delvano spray set.
Technical details
| CERES 200H | |
|---|---|
| Trailed / mounted | Mounted |
| Number of rows | 2 |
| Bunker capacity | 1.300 kg |
| Hydraulic tipping bunker capacity | 2.000 kg |
| Drive | Hydraulic |
| Inter-row distance | 2x75 - 2x80 - 2x85 - 2x90 |
| Plant protection options | Granular applicator Powdering unit Spray kits |
